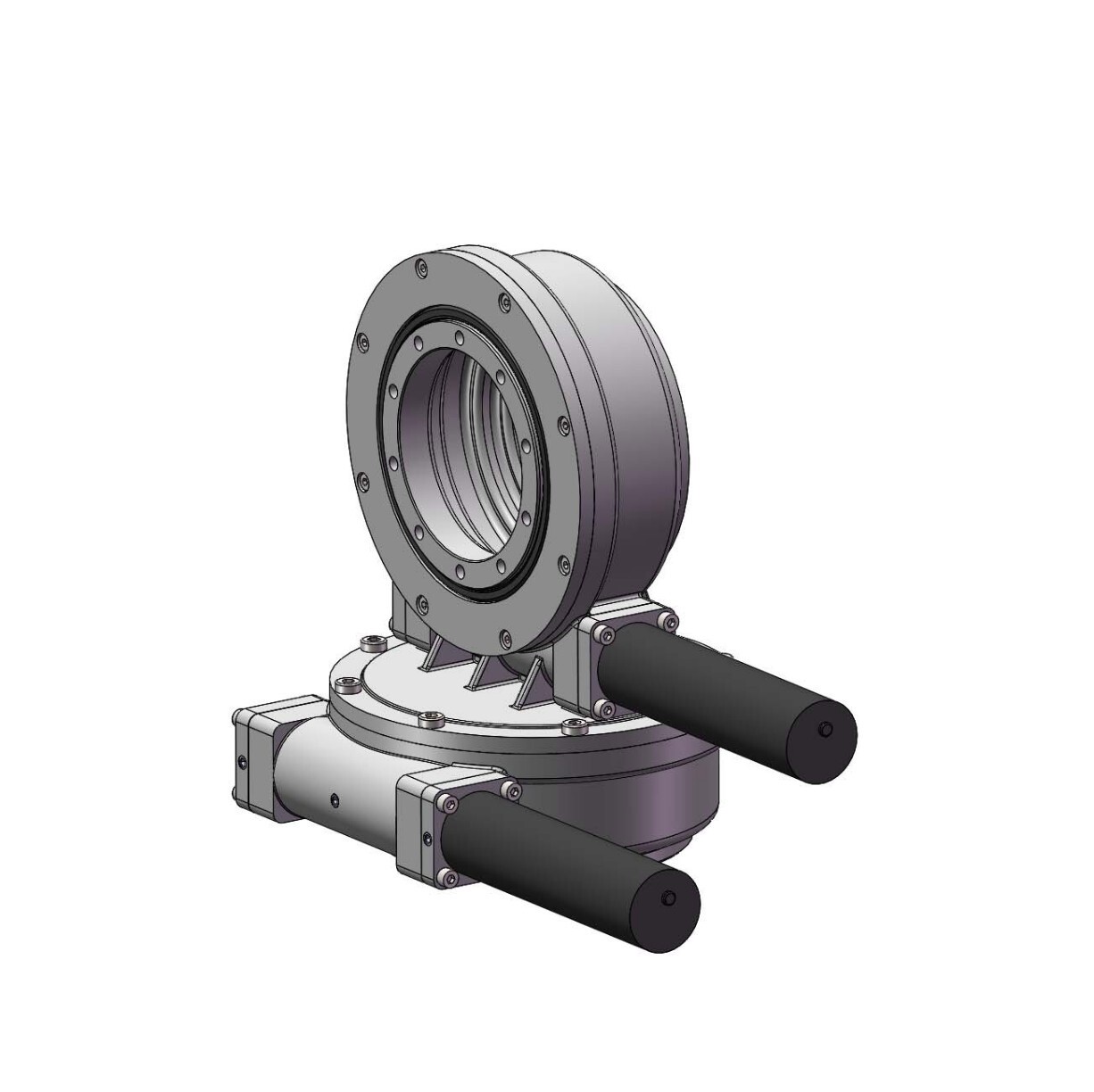

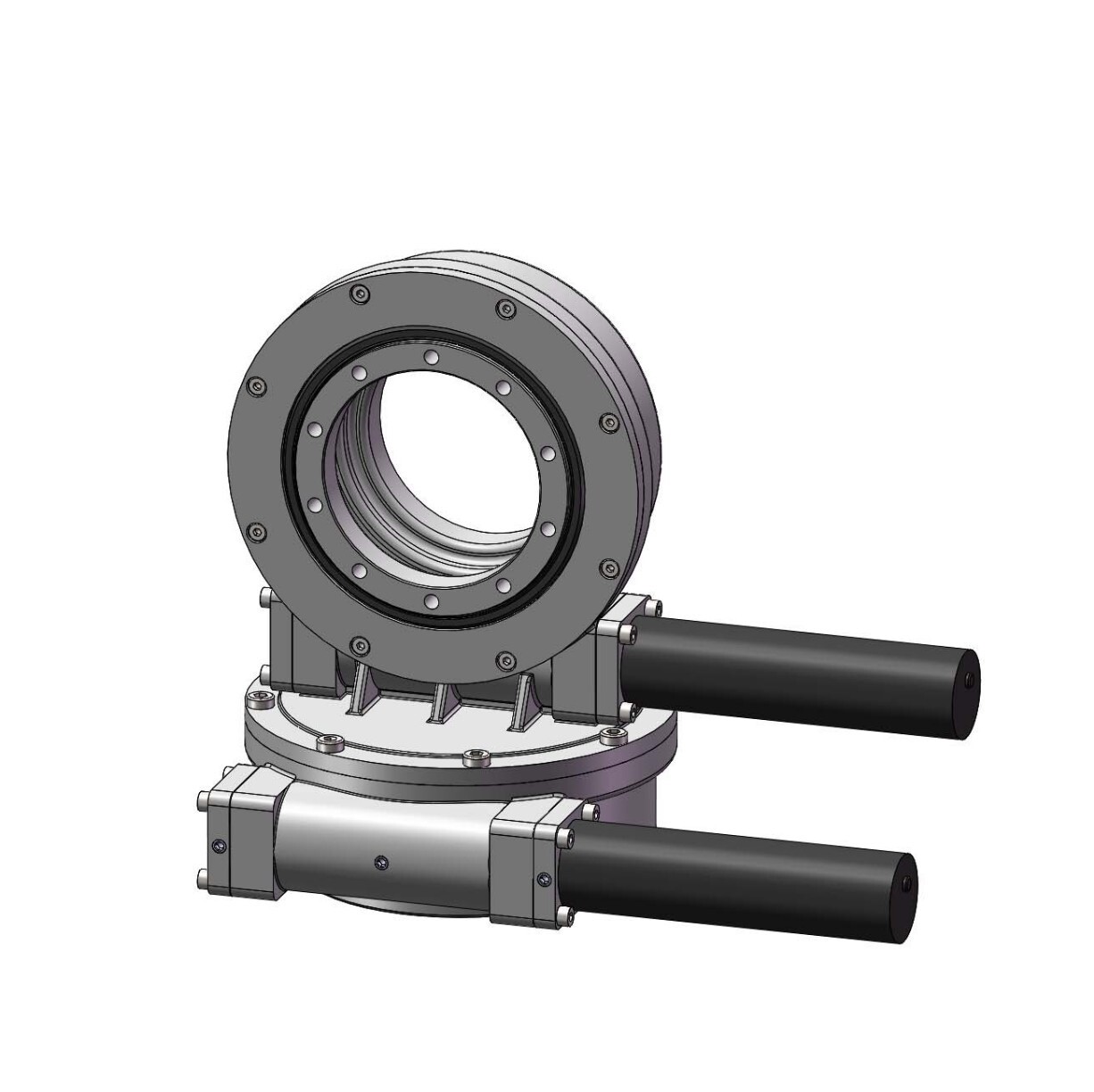

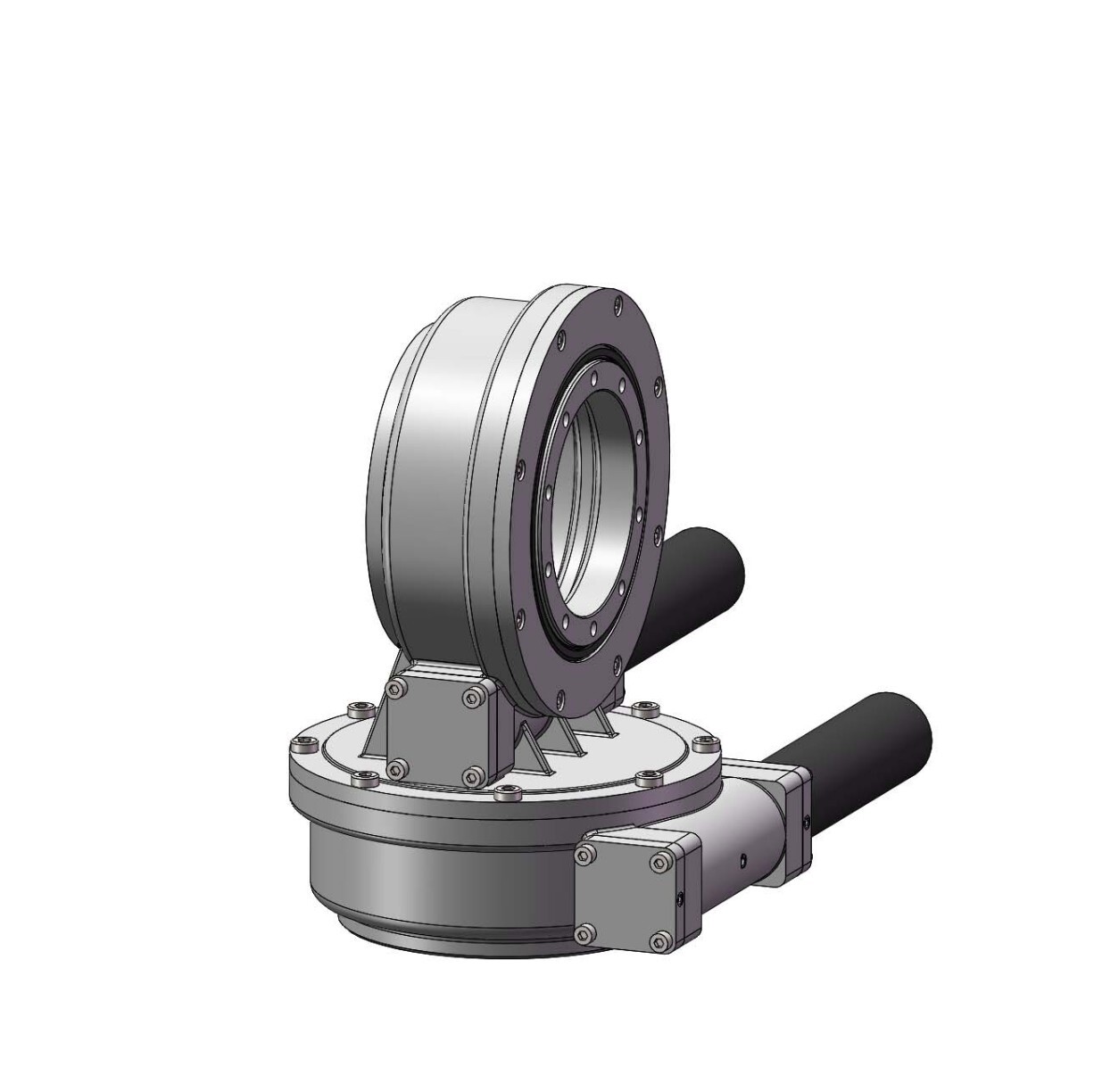

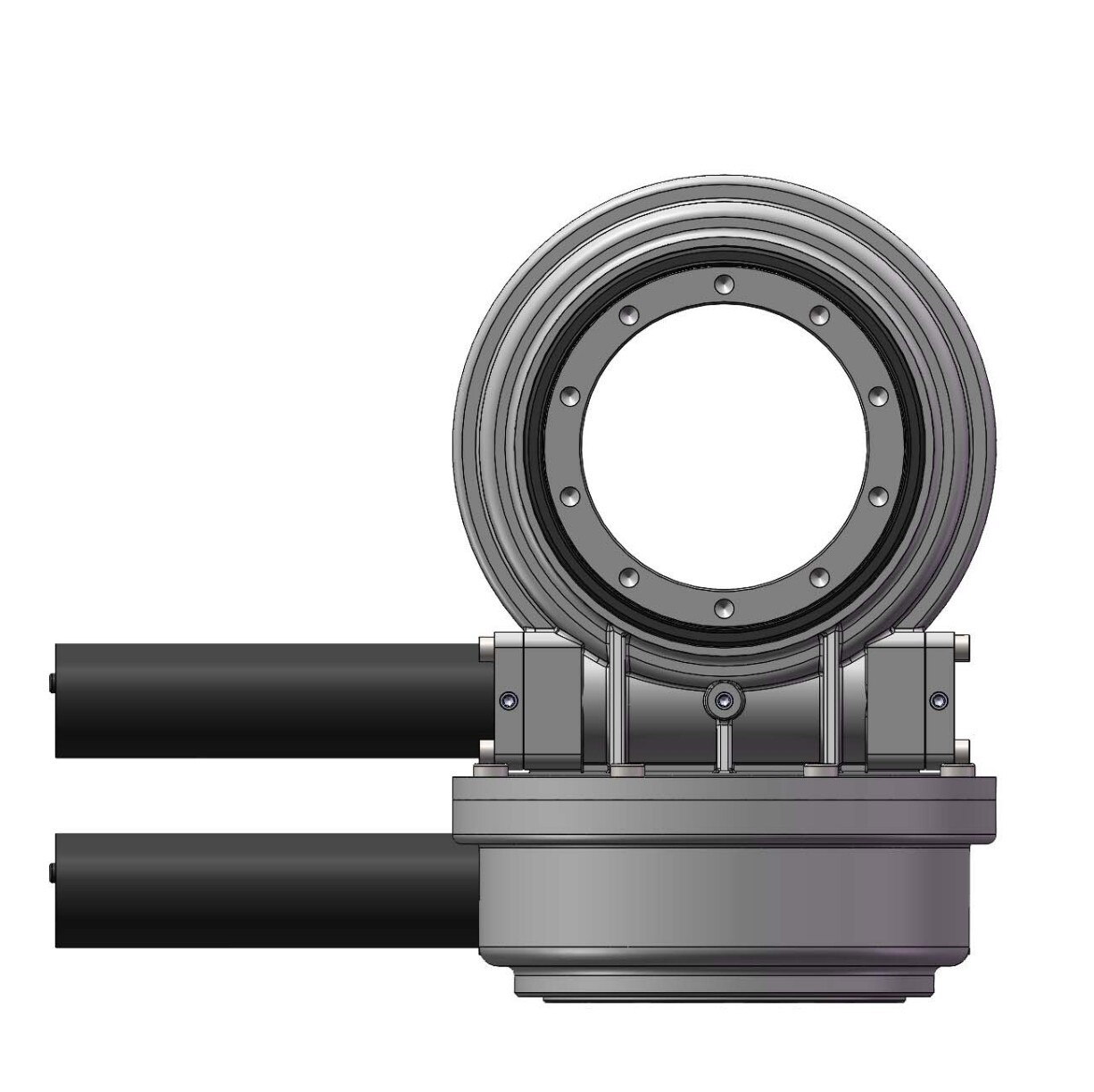

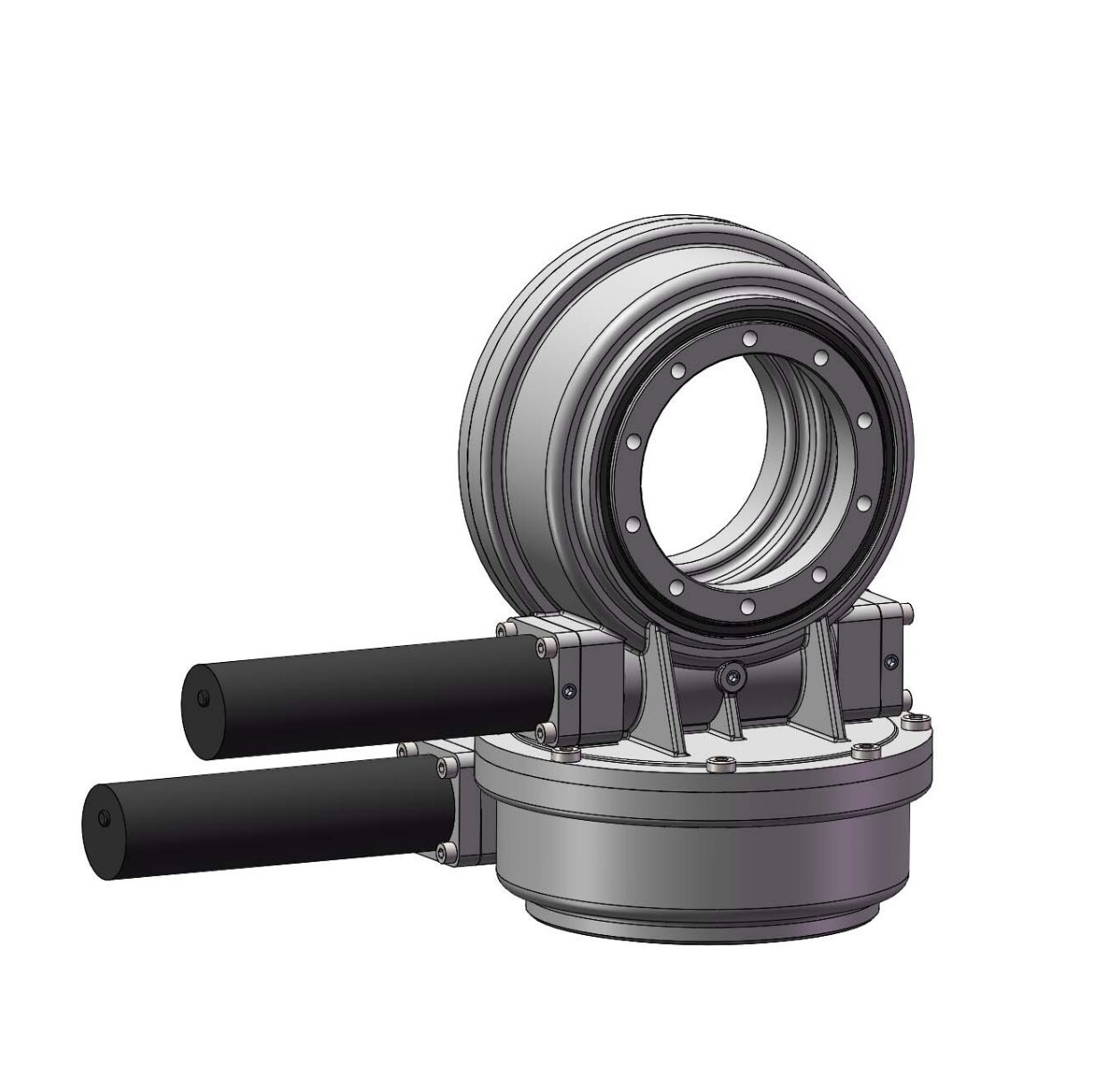

SDE7
Category: SDE Slewing Drive

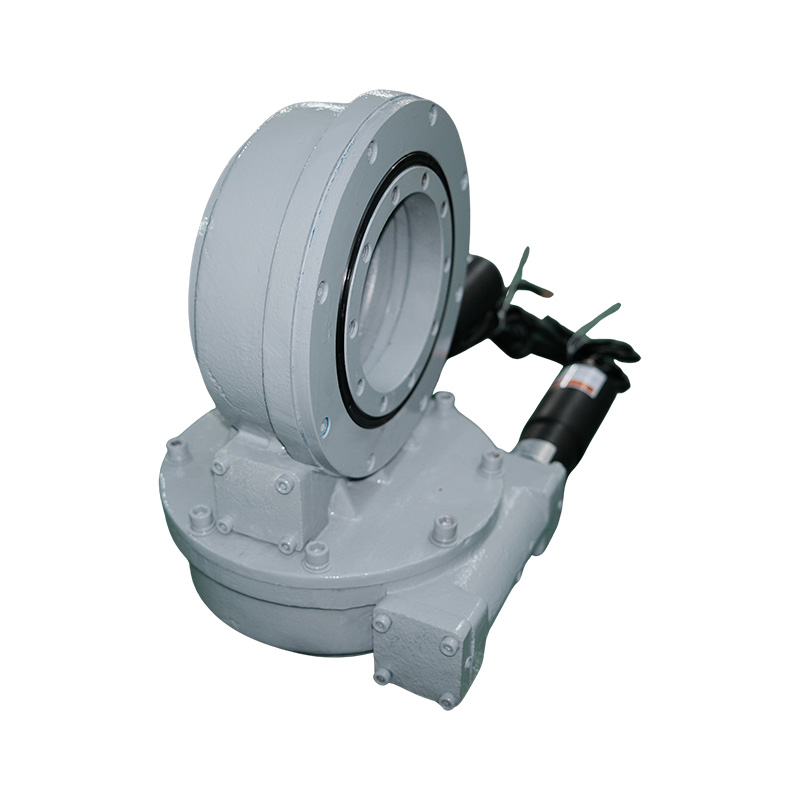

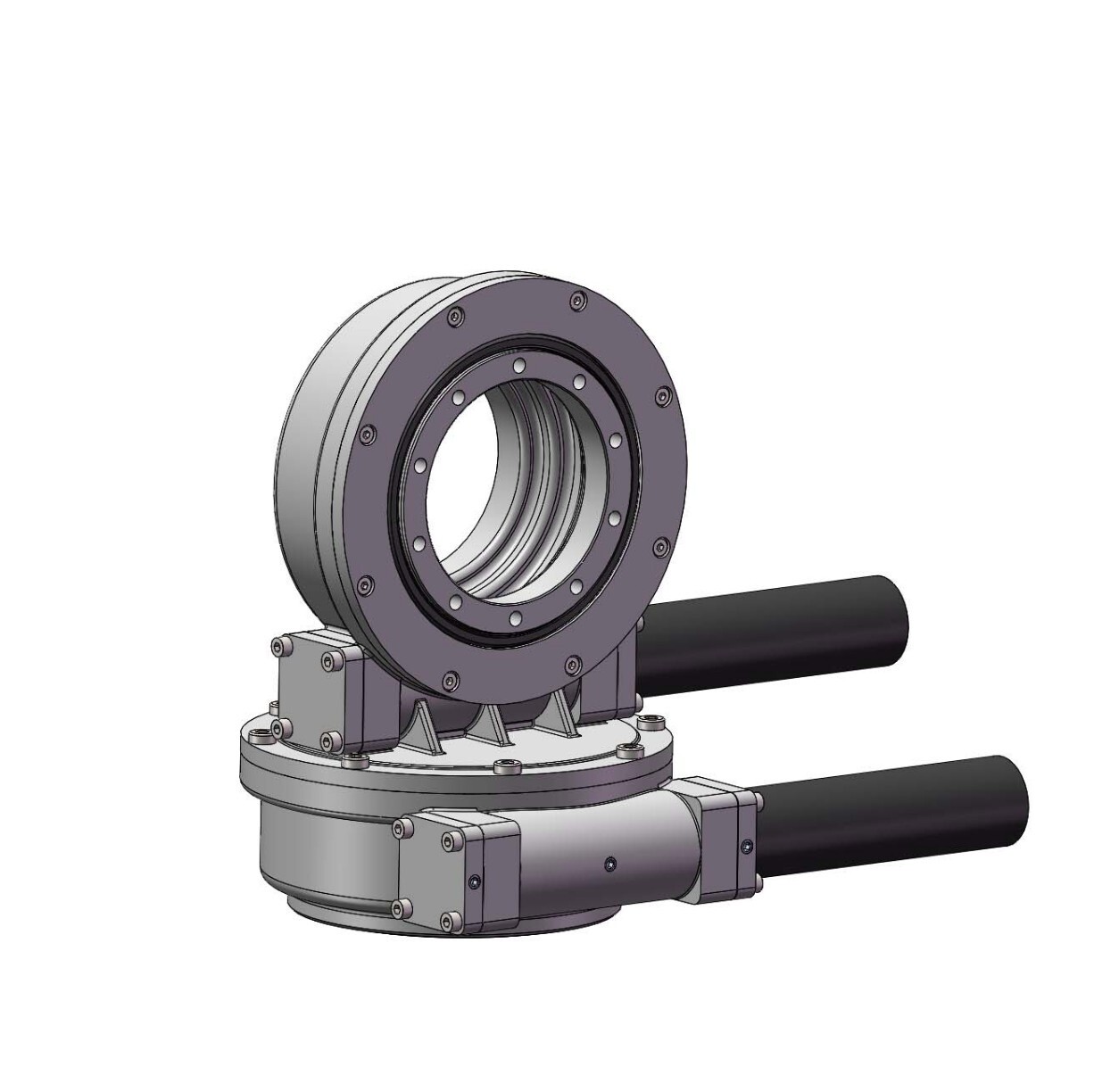

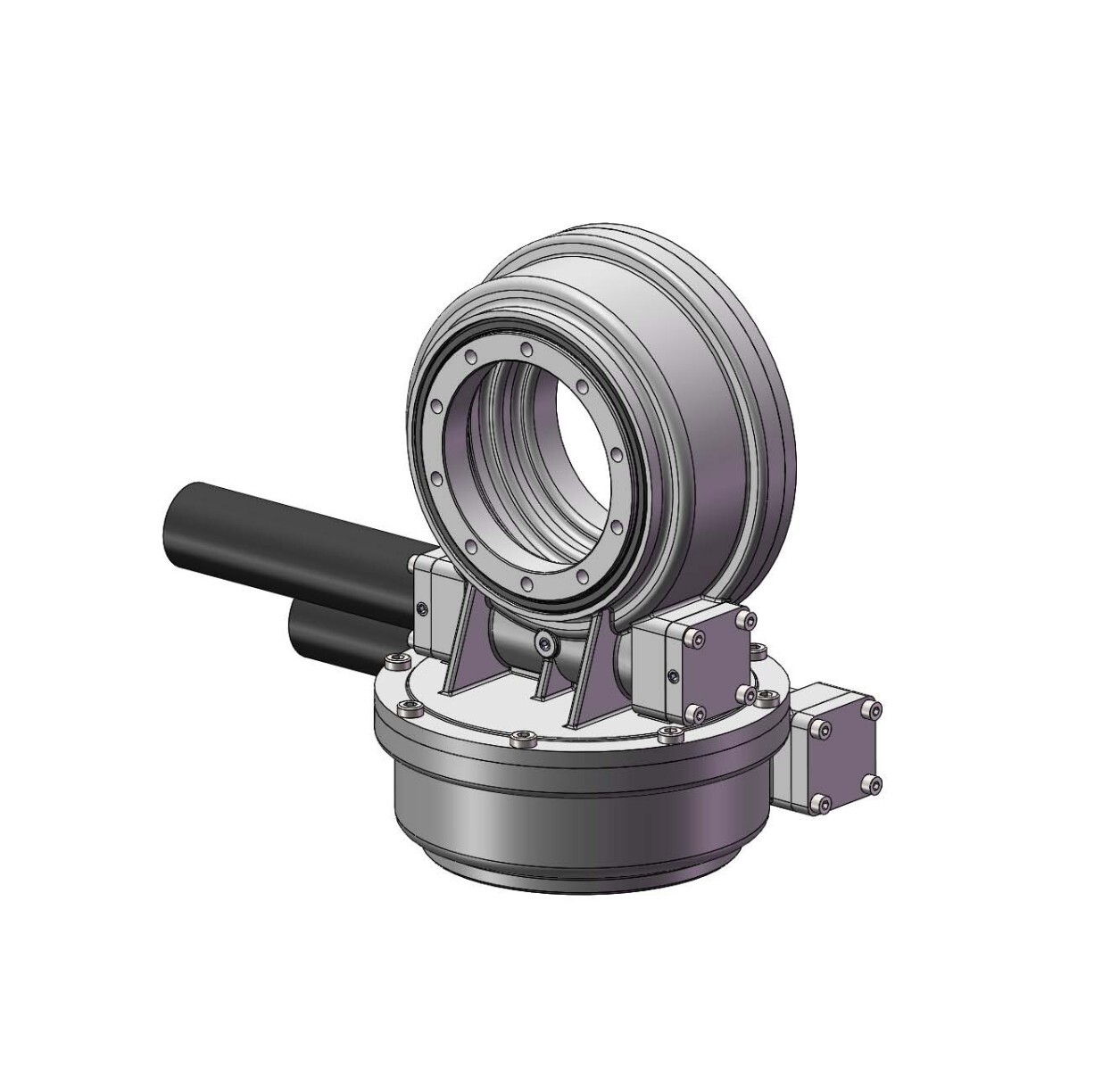

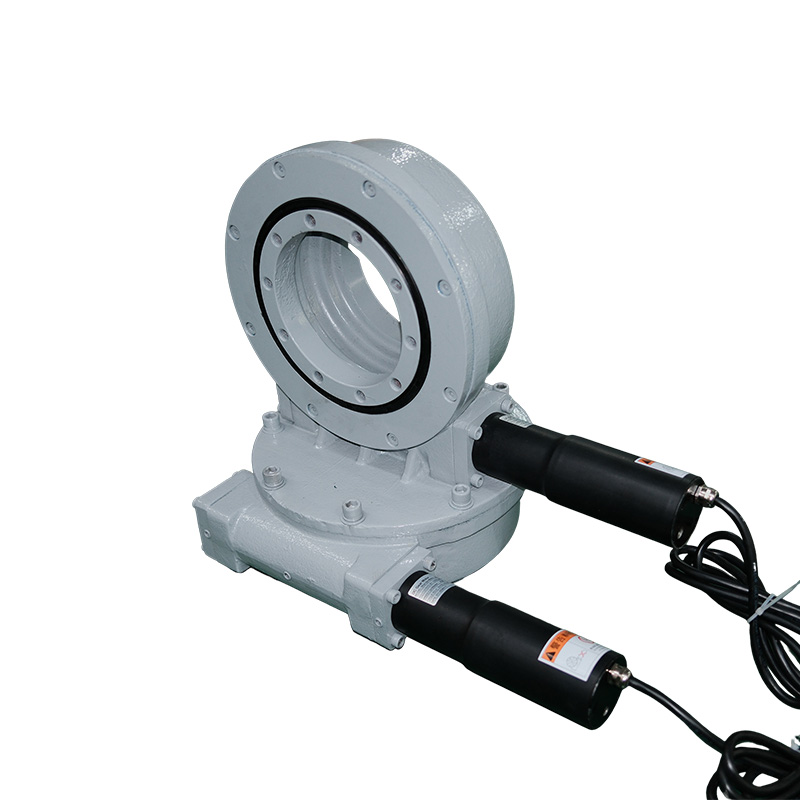

The dual axis slewing drive is a highly integrated unit designed for both vertical and horizontal mounting applications. It combines a slewing bearing, worm gear transmission, motor and sealing system into a compact and robust structure.
Inquire
The dual axis slewing drive is a highly integrated unit designed for both vertical and horizontal mounting applications. It combines a slewing bearing, worm gear transmission, motor and sealing system into a compact and robust structure.
By using two-axis slewing drive (azimuth and elevation), the solar trackers’ energy yield can be maximized up to 40% more. It can keep solar panels perpendicular to sunlight throughout the day and seasons. It offers greater flexibility in equipment design while reducing overall system cost.
Key Features
- Use a toroidal double-envelope worm gear to achieve multi-tooth contact and double-contact line contact improves load-bearing capacity.
- Suitable for applications requiring both azimuth and elevation tracking
- Simplify system structure, save installation space and reduce installation costs
- Provide reliable self-locking for its worm gear structure under most working conditions, enhancing operational safety.
Multiple sealing protections ensure stable performance in outdoor, dusty, and harsh environments.
Typical Applications
- Dual axis solar tracking systems
Radar, antenna, and surveillance systems
Optional Configurations
- Offer various gear ratios and output torque ranges
- Available with electric motors, hydraulic motors, stepper motors or servo systems to meet different control requirements.
- Available with encoders, limit switches, corrosion-resistant coating, and customized solutions.
Technical Parameter
SDE TYPE SLEW DRIVES
ZSDE TYPE SLEW DRIVES

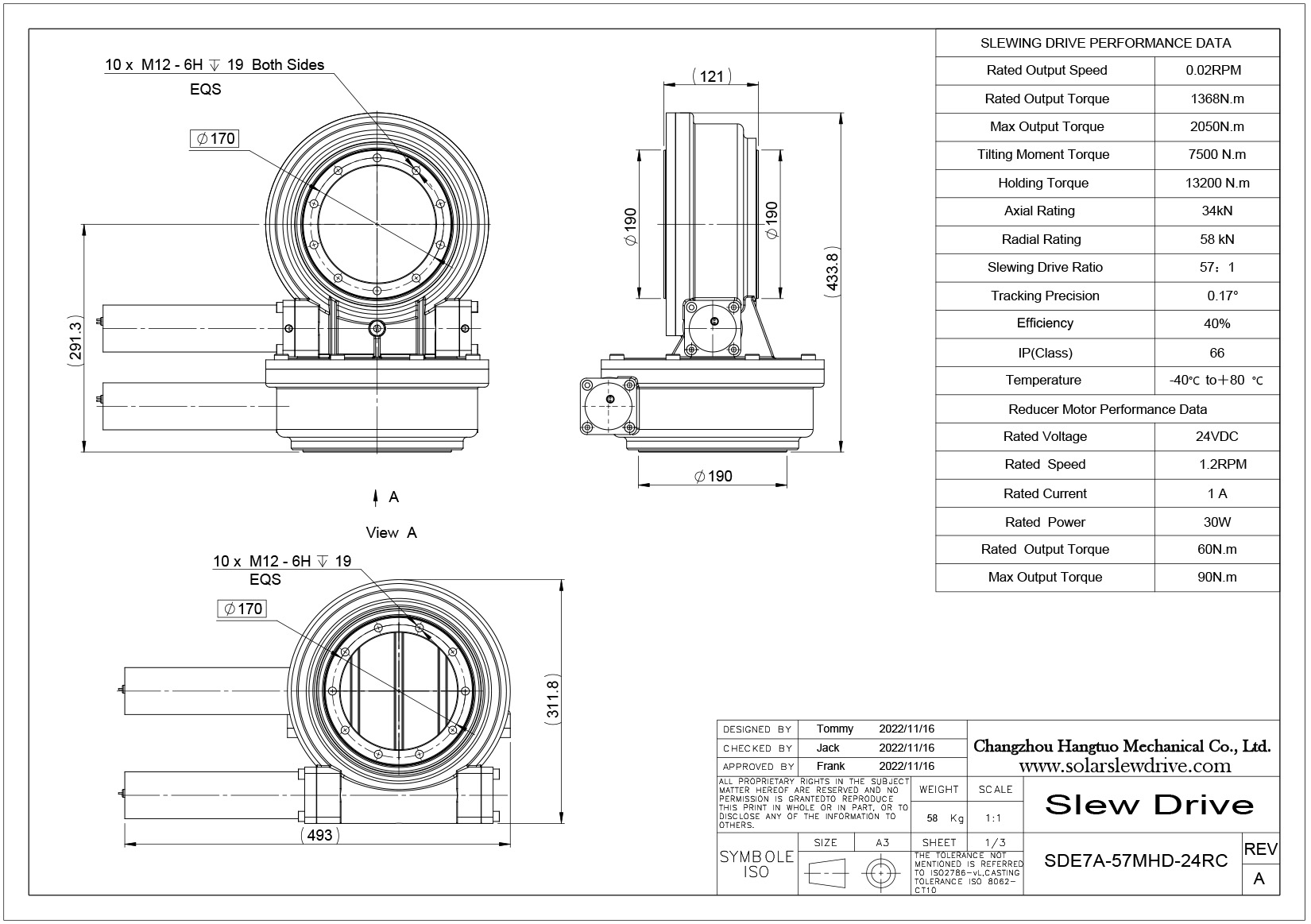

Drawing

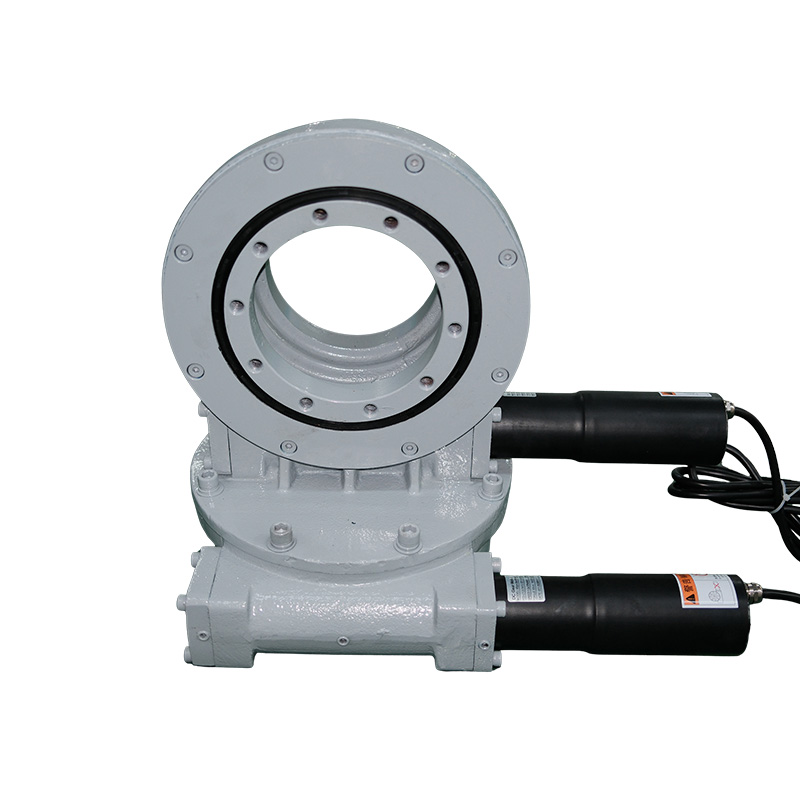

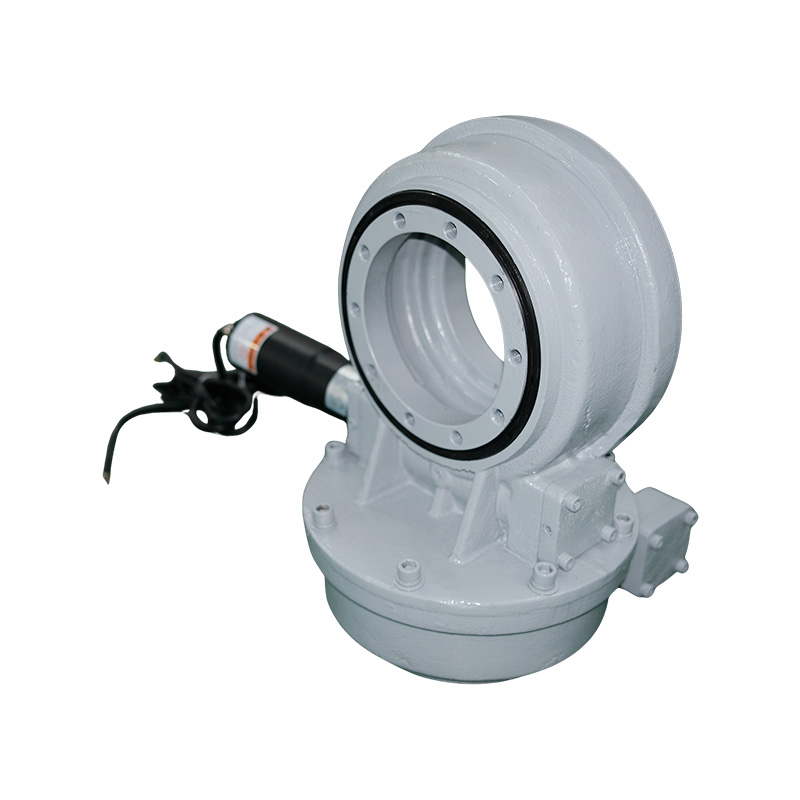

Material Object
Video
